Getting Started with ClickFit
Commercial Metal Roof Racking System
PanelClaw’s ClickFit commercial metal roof racking system, designed for fast, simple installation and reliable performance across a broad range of metal roof types including standing seam, trapezoidal and corrugated. ClickFit is fully compatible with clawOS and is available with U.S. made components for projects seeking the IRA Domestic Content Bonus Credit. Backed by PanelClaw’s proven commercial rooftop expertise, the ClickFit system streamlines metal roof solar projects from design through installation.
Technical Details
System Specifications
The ClickFit racking system is widely compatible with a variety of commercial metal roof types and slopes. 5 primary components and two versatile mounts make up the entire system. Third party mounts such as S-5! are compatible with ClickFit.
- Applicable on roofs with slopes from ¼:12 to 12:12
- Compatible on Standing Seam, Corrugated and Trapezoidal metal Roofs
- Compatible with various third party roof mounts, including S-5!
- Platform Load: ~2.0 psf
- Module Orientation: Portrait
- Up to 190 mph ASCE 7-22 (> 190 mph by approval)
- Wind Exposure category: B and C (D with review)
- USGS Seismic Categores: A, B, C, D (others require engineering review)
Reliability
The popular ClickFit has been installed for over half a decade across North America. It has undergone extensive reliabiliy and performance testing and exceeds US code requirements.
- 25 year warranty
- ANSI/UL 2703-2015 Listed
- System Fire Rating Class A with Module Types
Roof Configurations
Standing Seam Roofs

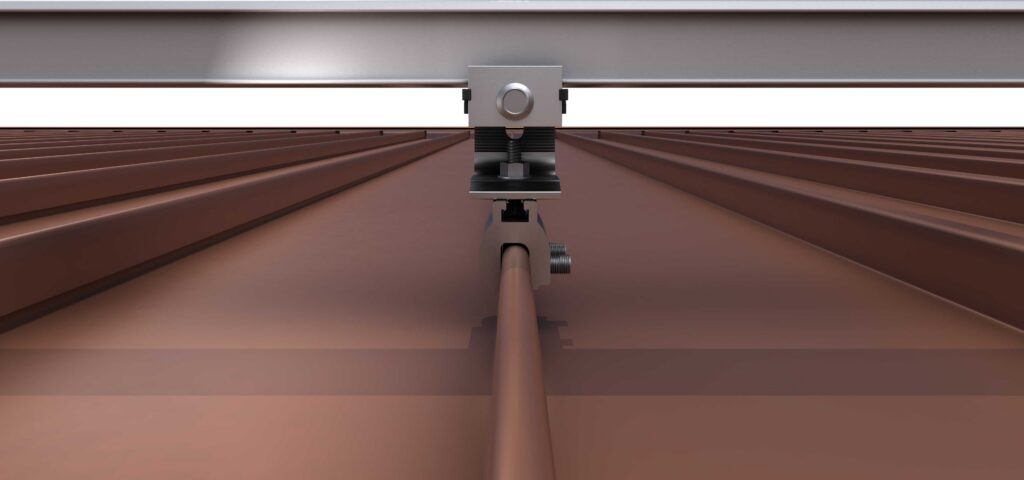

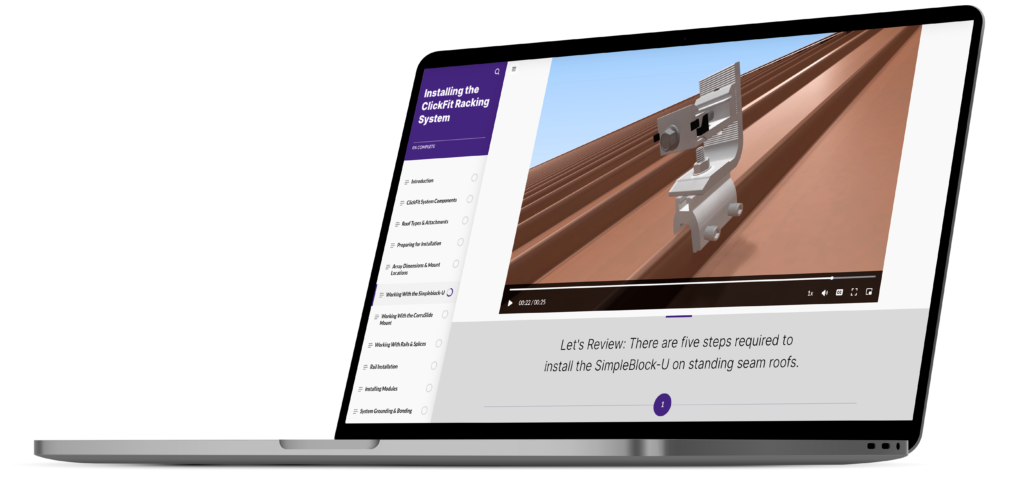

Install ClickFit to a variety of standing seam metal roof profiles with the penetration free SimpleBlock-U roof mount.

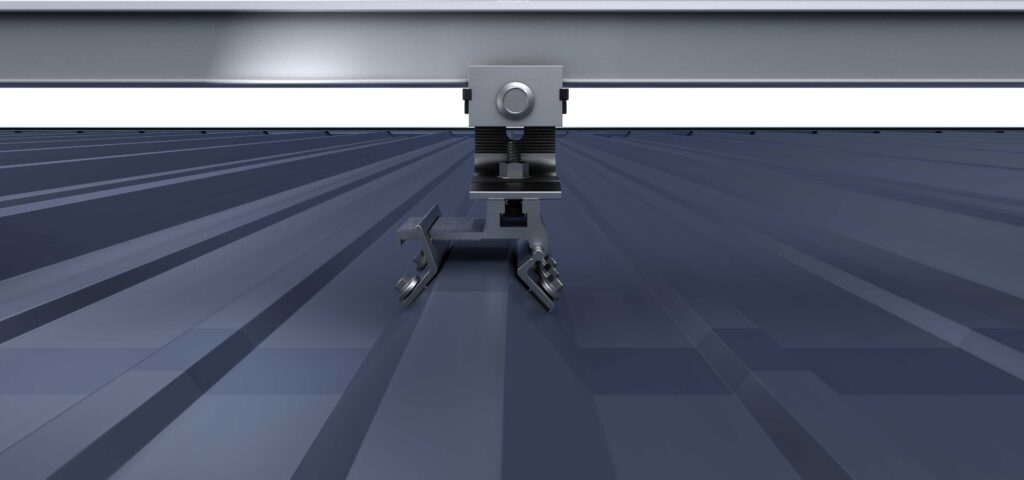

Trapezoidal Metal Roof

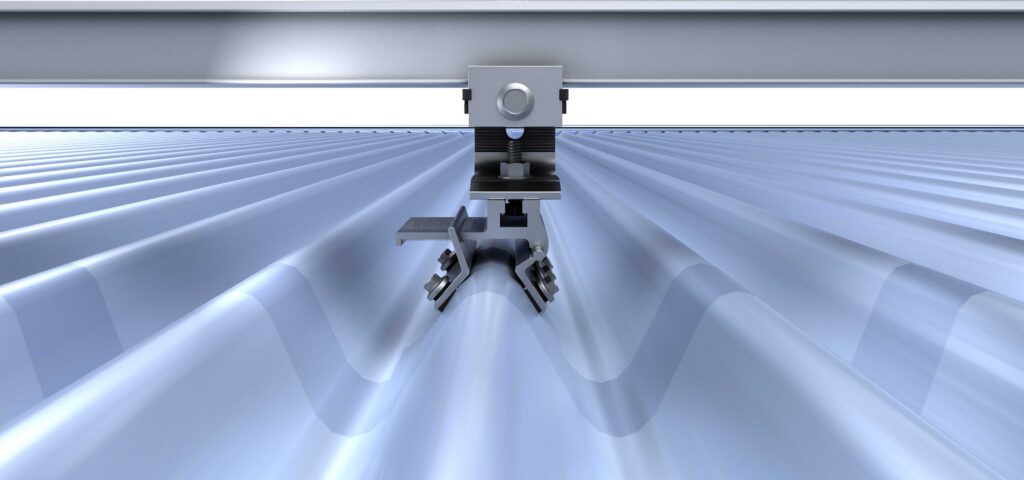

Install ClickFit to a variety of trapezoidal metal roofs with the versatile and watertight CorruSlide roof mount.
Corrugated Metal Roof
Install ClickFit to a variety of corrugated metal roofs with the versatile and watertight CorruSlide roof mount.

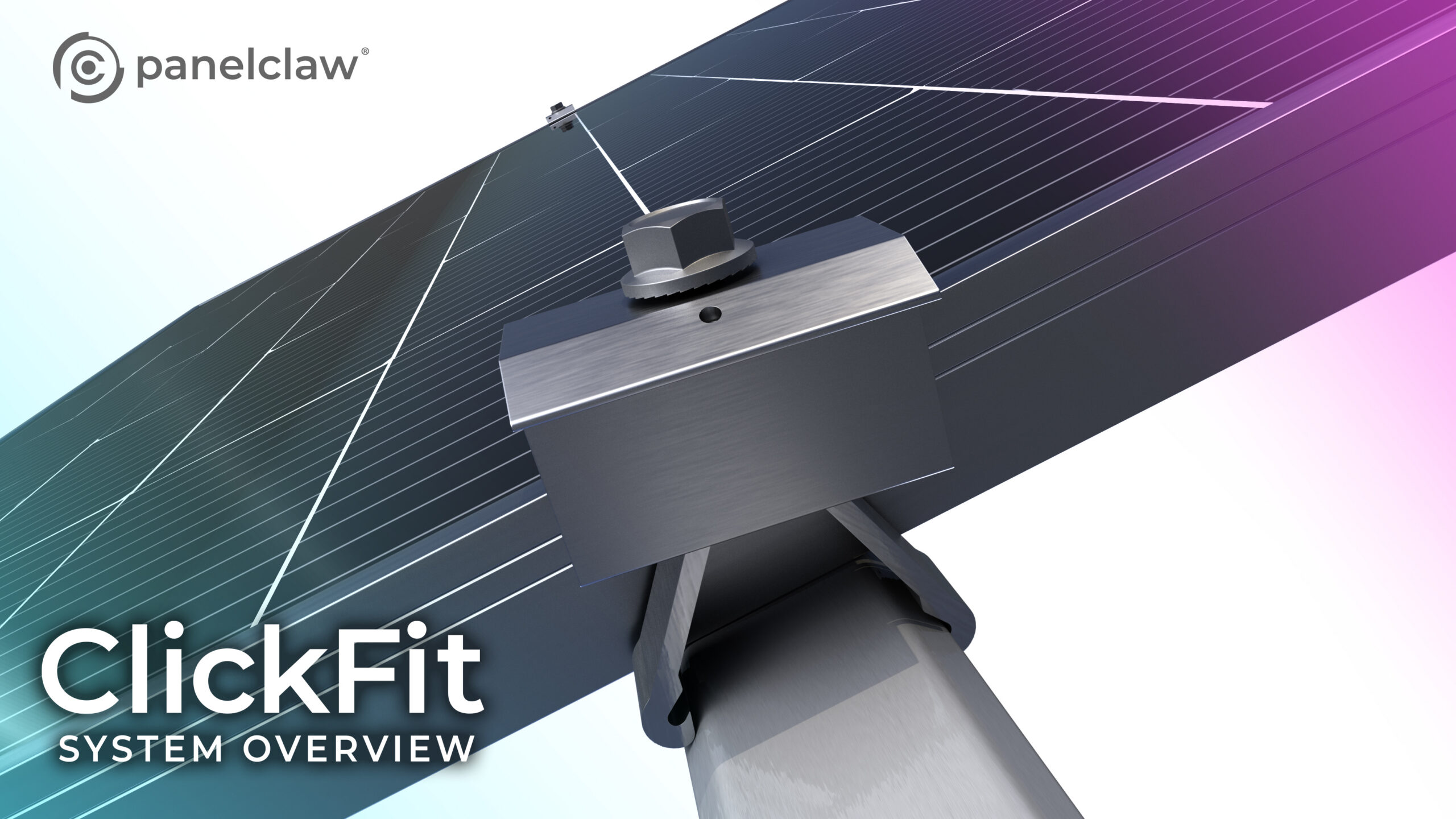

System Components
The ClickFit racking system features six basic components that can be installed using a single tool.

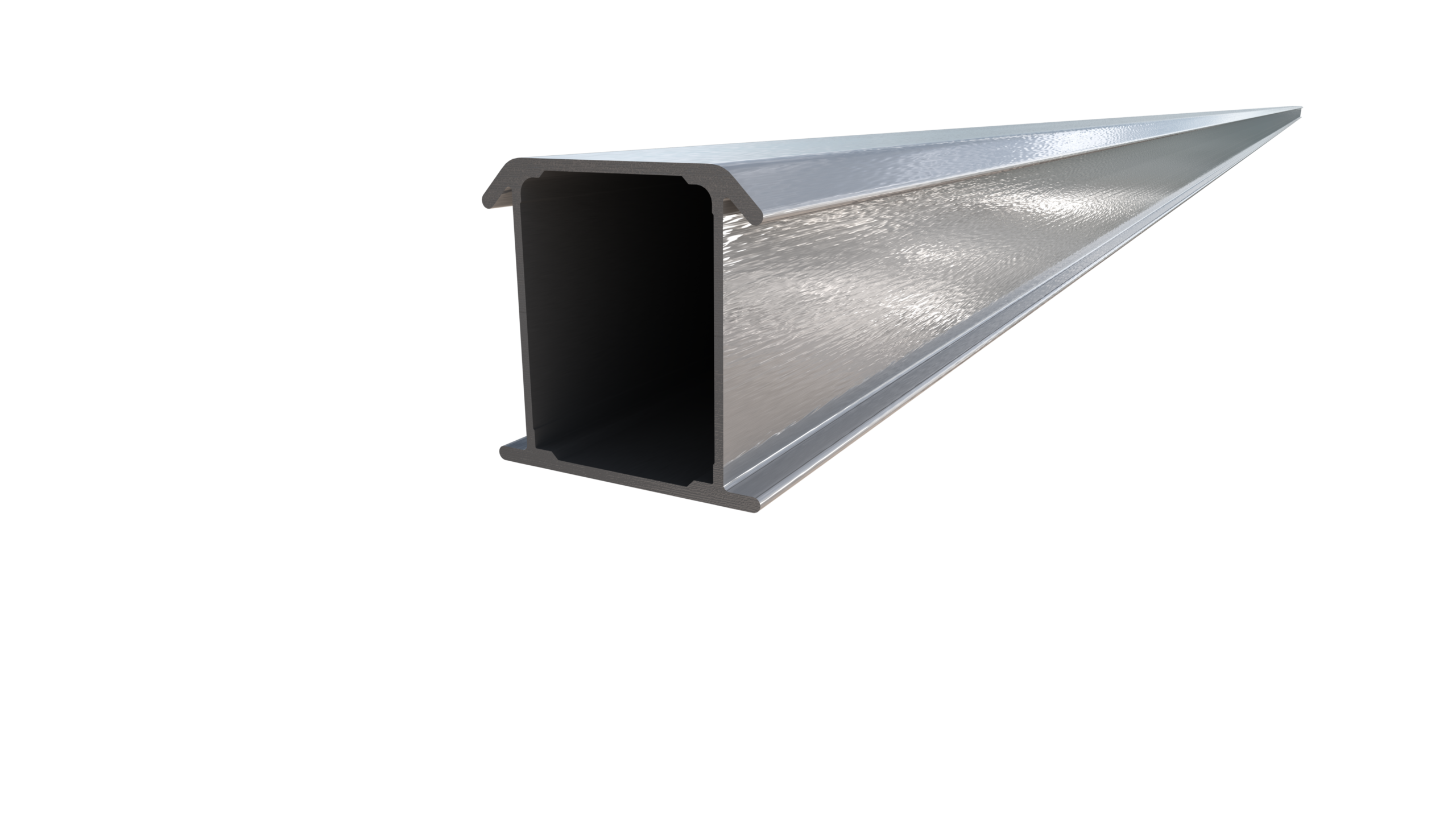

ClickFit Rail
Click in rail available in 92″, 105″, 183″, 210″ inch lengths

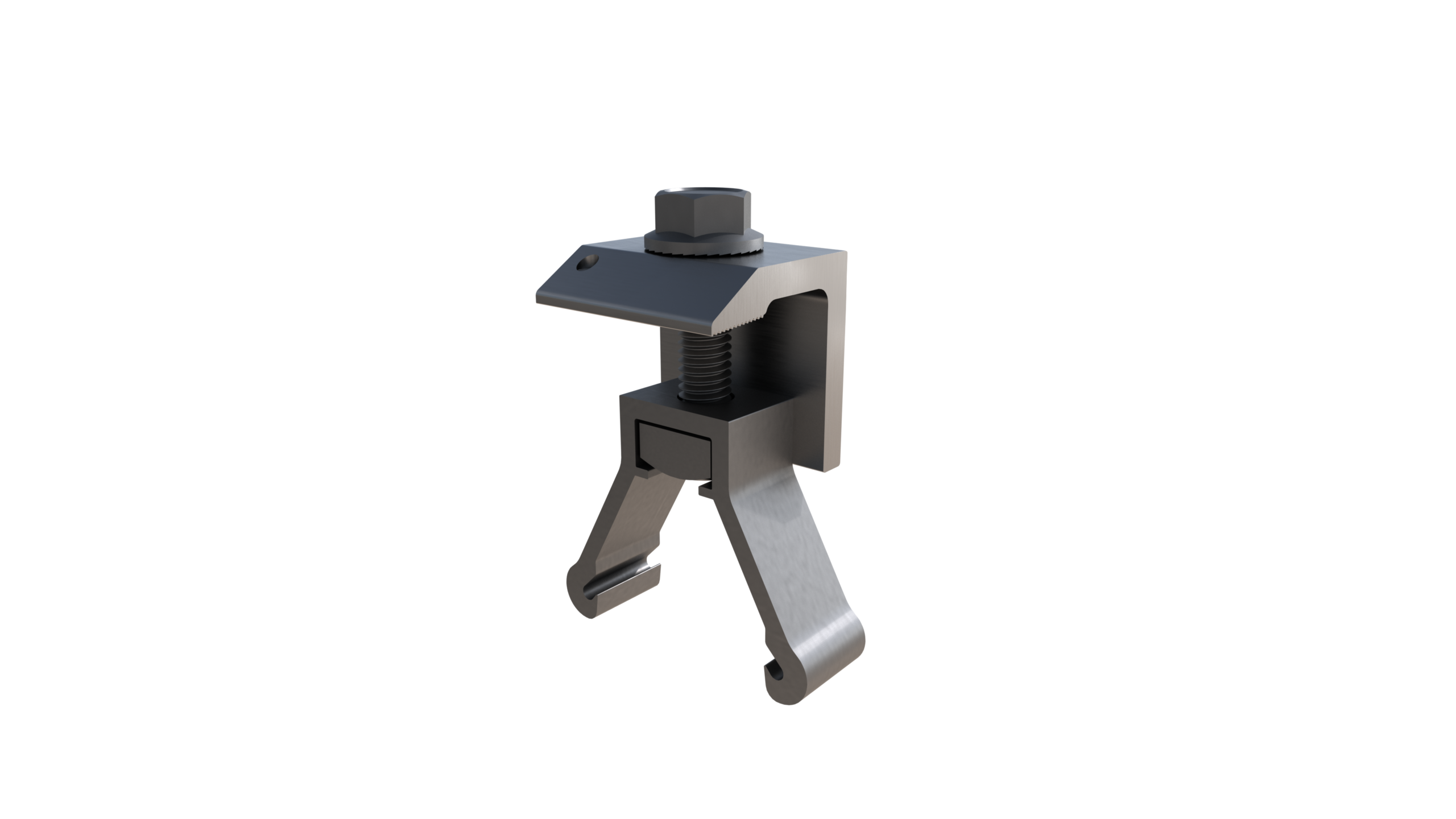

End Clamp
One Click-on End Clamp fits modules from 30-40MM in height

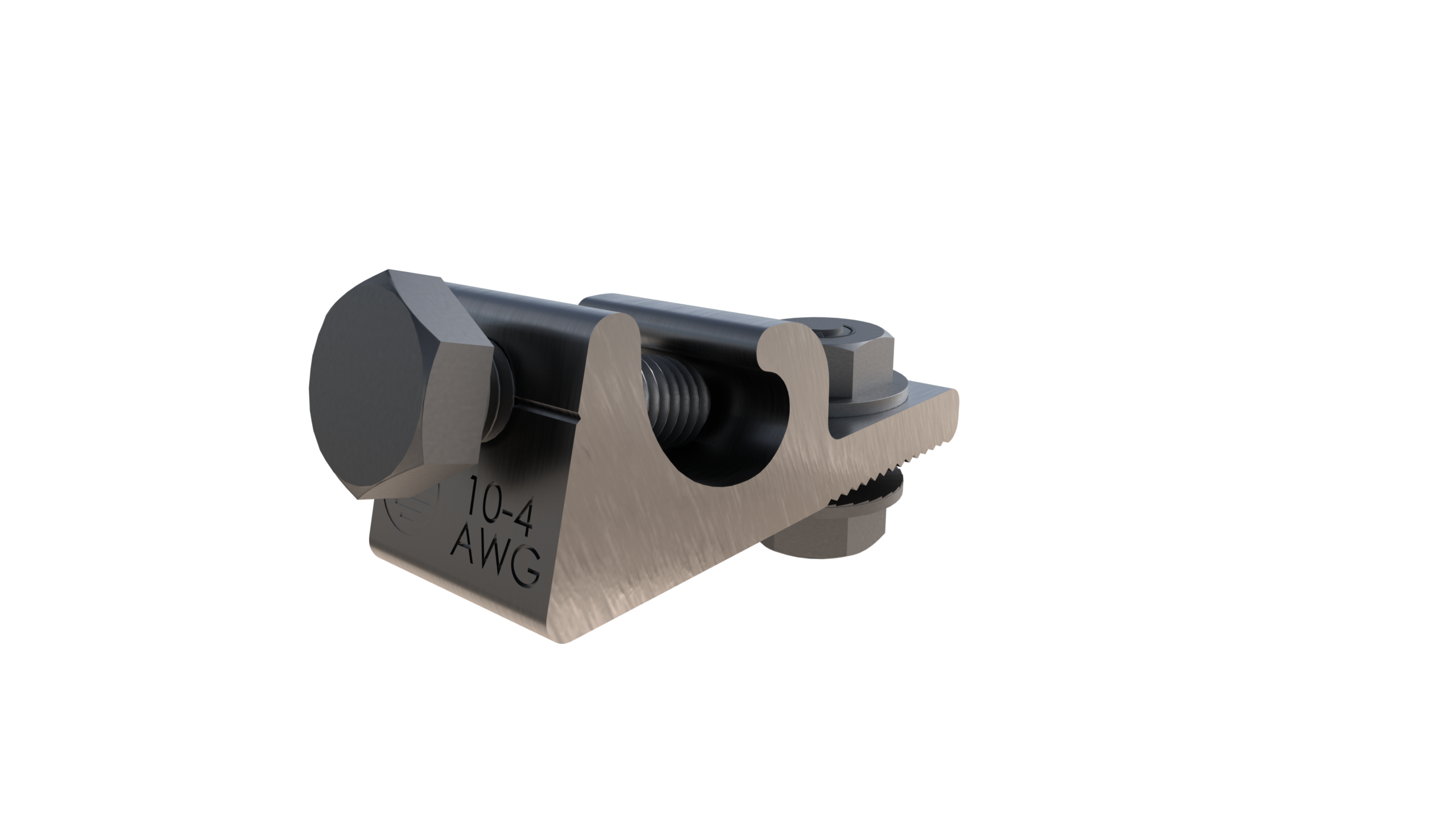

Grounding Lug
One PanelClaw Grounding lug required per continuous array

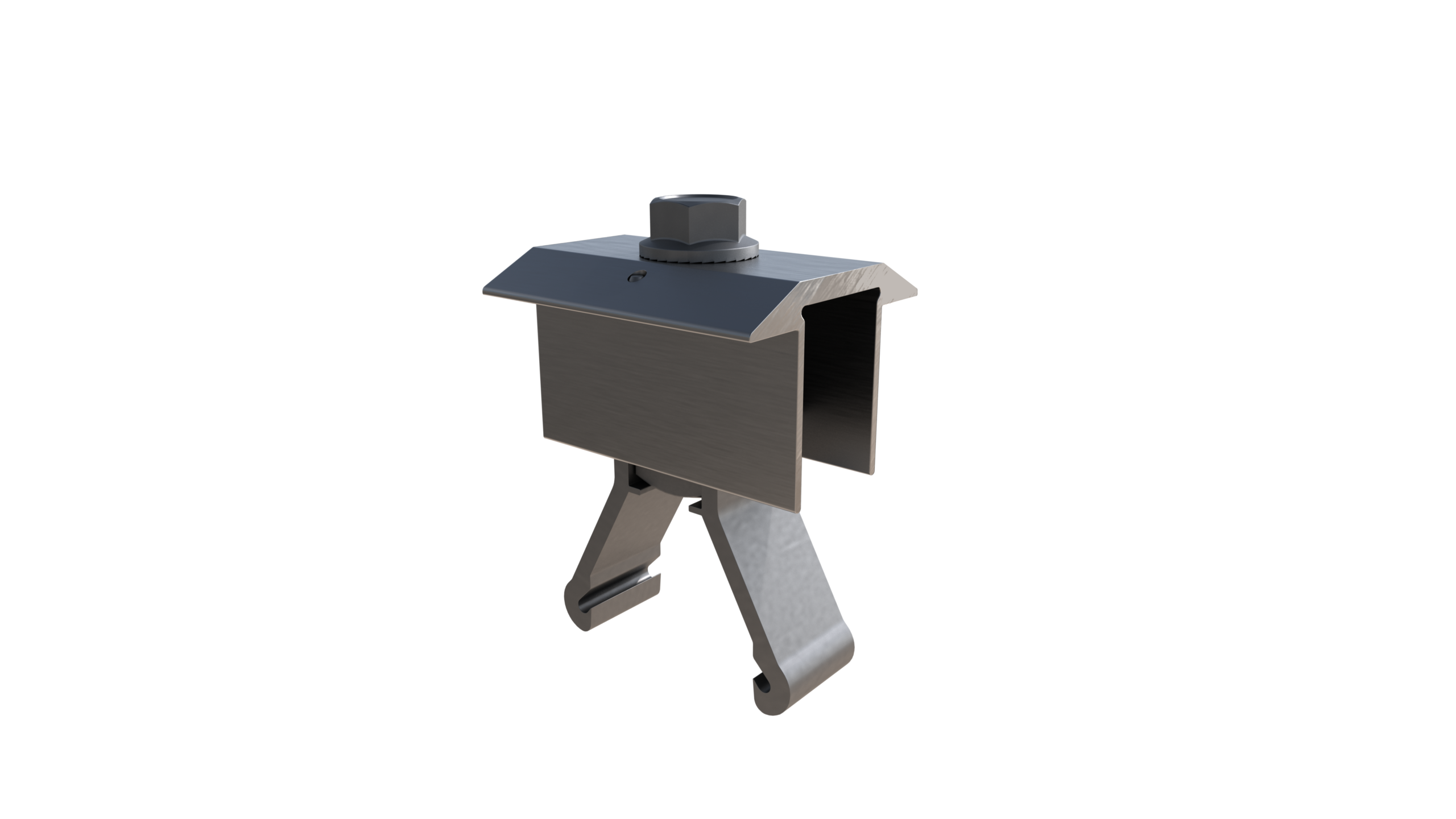

Mid Clamp
Features integrated bonding pins and fits module frames sized 30-40MM

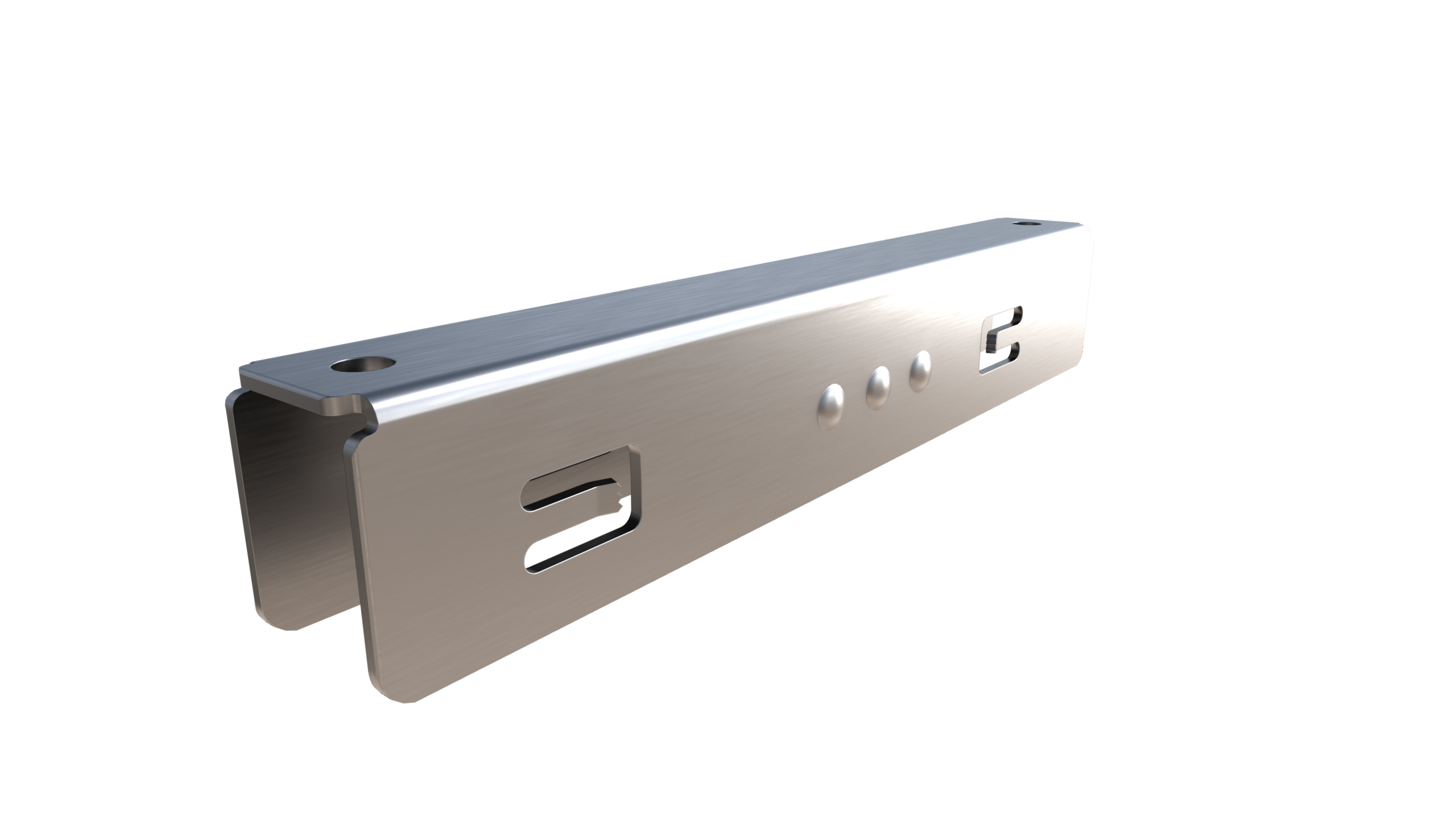

Splice
Tool-free fully bonded structural internal splice installs in seconds

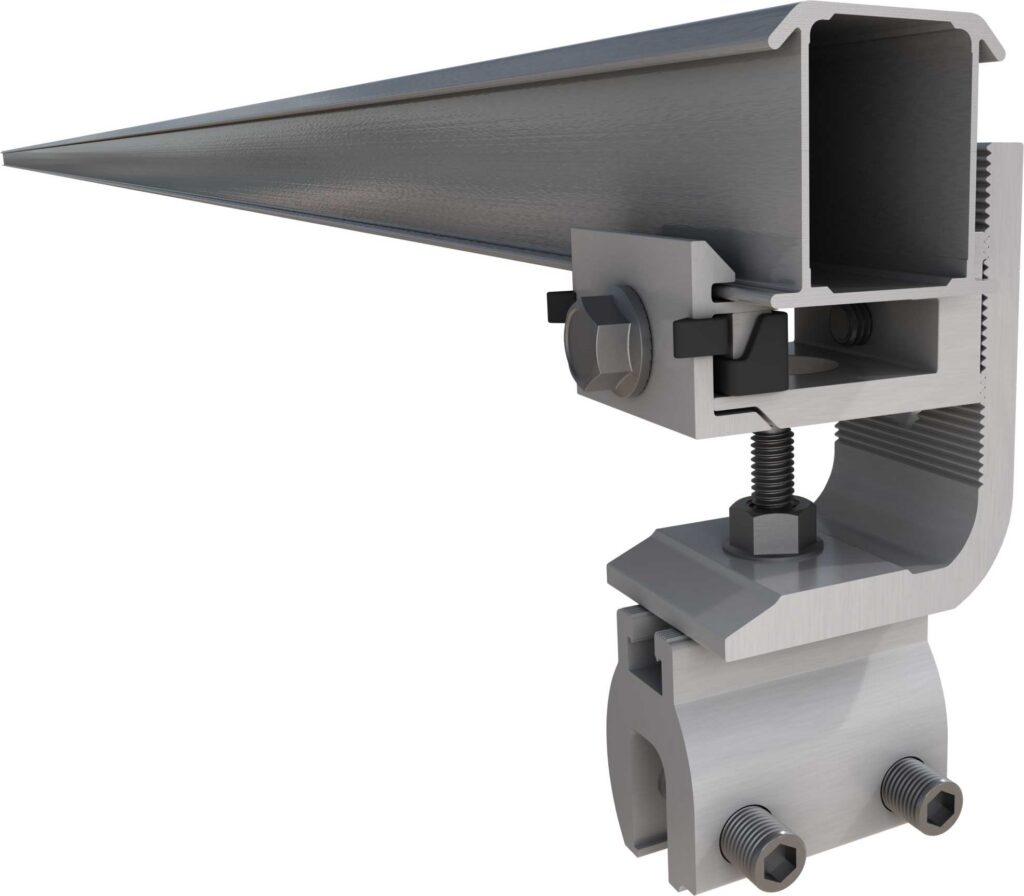

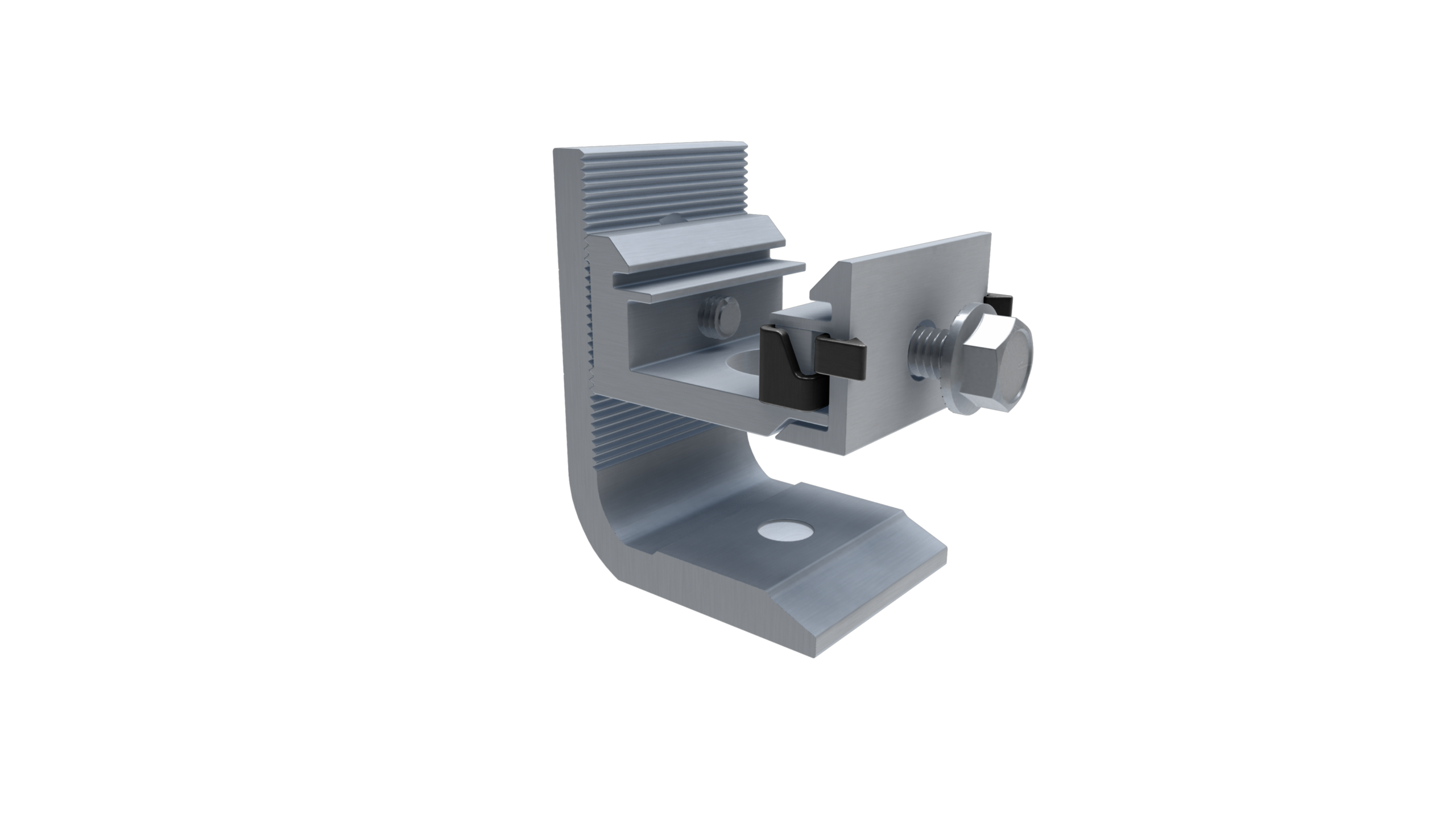

Universal L-Foot
Combines with a variety of metal roof attachments and features pre-installed bolt to secure the Rail
Mounts & Accessories
ClickFit mounts are compatible with a variety of metal roofs, and the system is also compatible with various third party mounts such as S-5!. The system features a full suite of wire management accessories.
Additional Mounts
ClickFit is compatible with various S-5! metal roof attachments, available from PanelClaw.

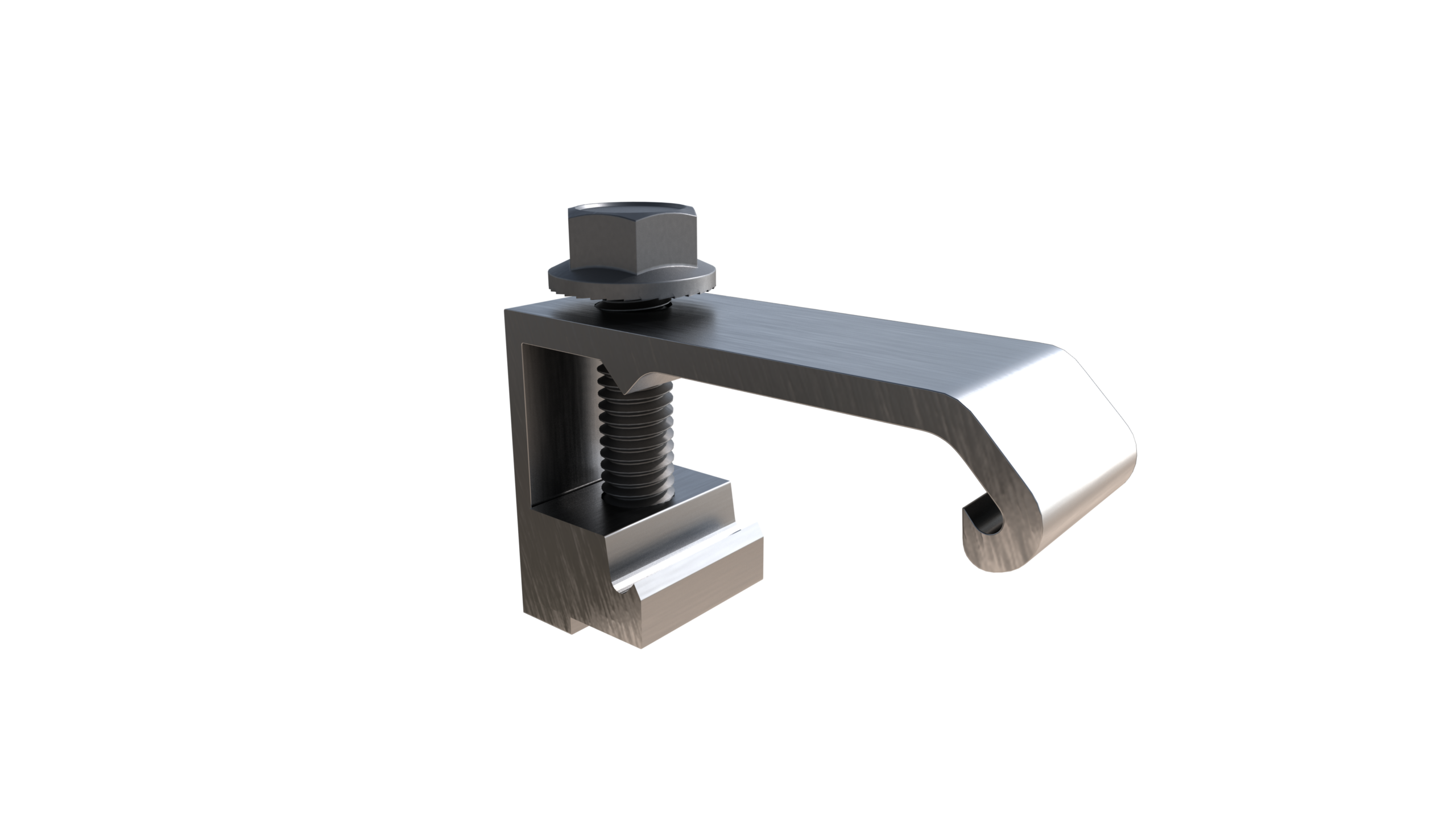

ClickFit MLPE Mount
Attaches and secures the Module Level Power Electronics to the top of the rail

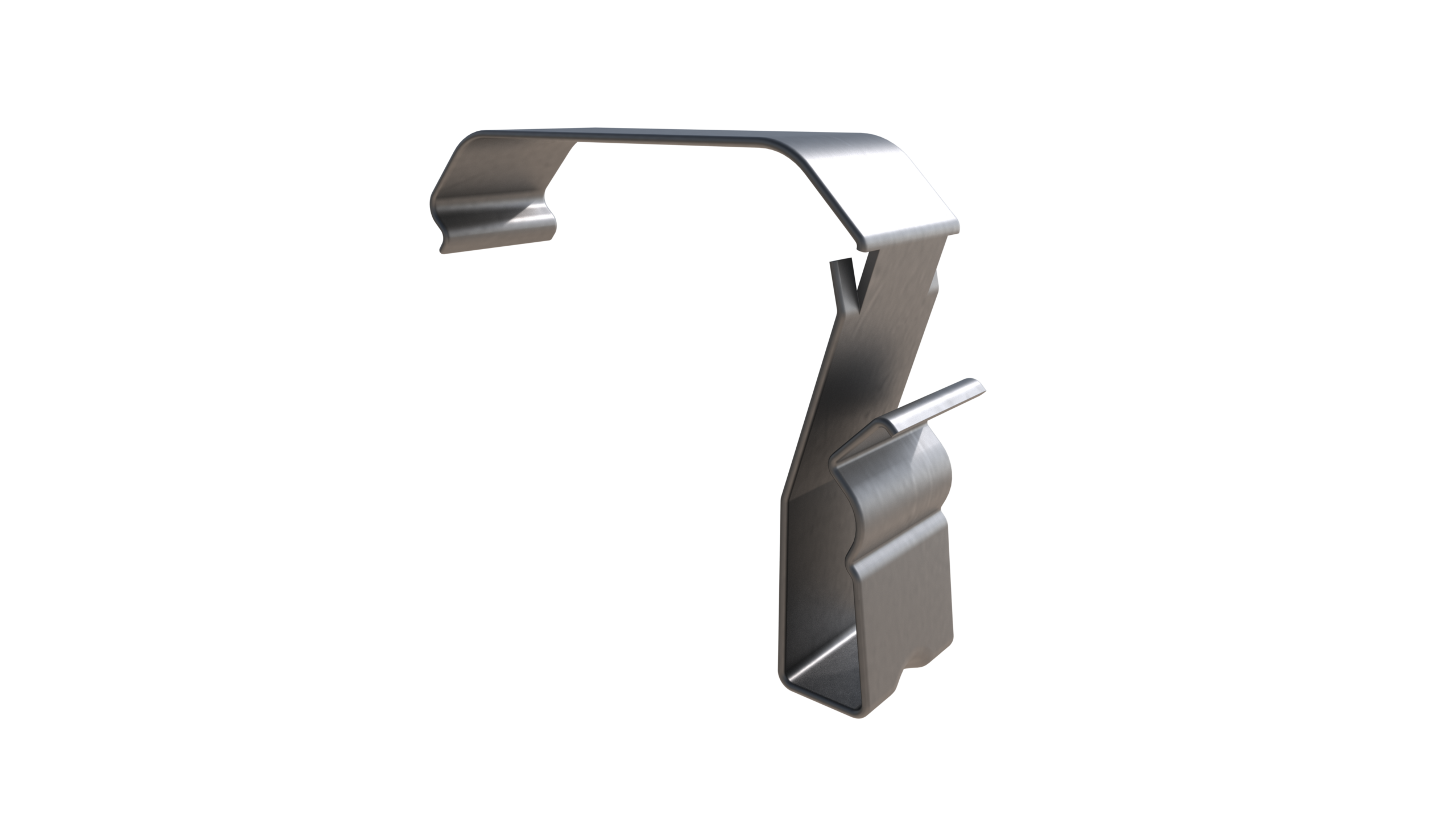

ClickFit Wire Clip
Stainless Steel ClickFit Wire Clip clicks onto the top of the rail and accommodates 1-3 PV wires or 1 Q cable and 1-2 PV wires.

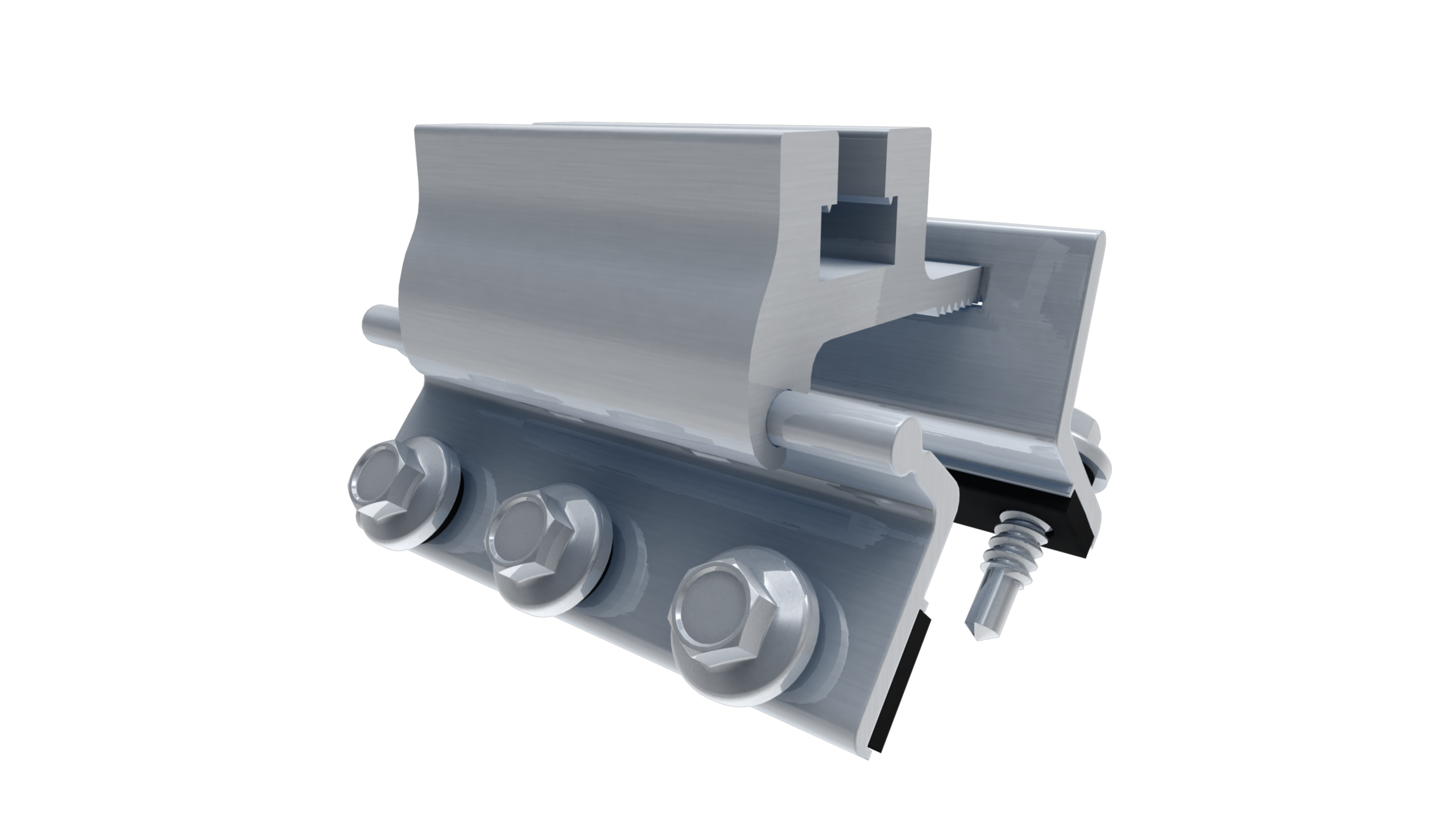

CorruSlide
Combines with the Universal L-Foot to attach the ClickFit system to trapezoidal and corrugated roofs

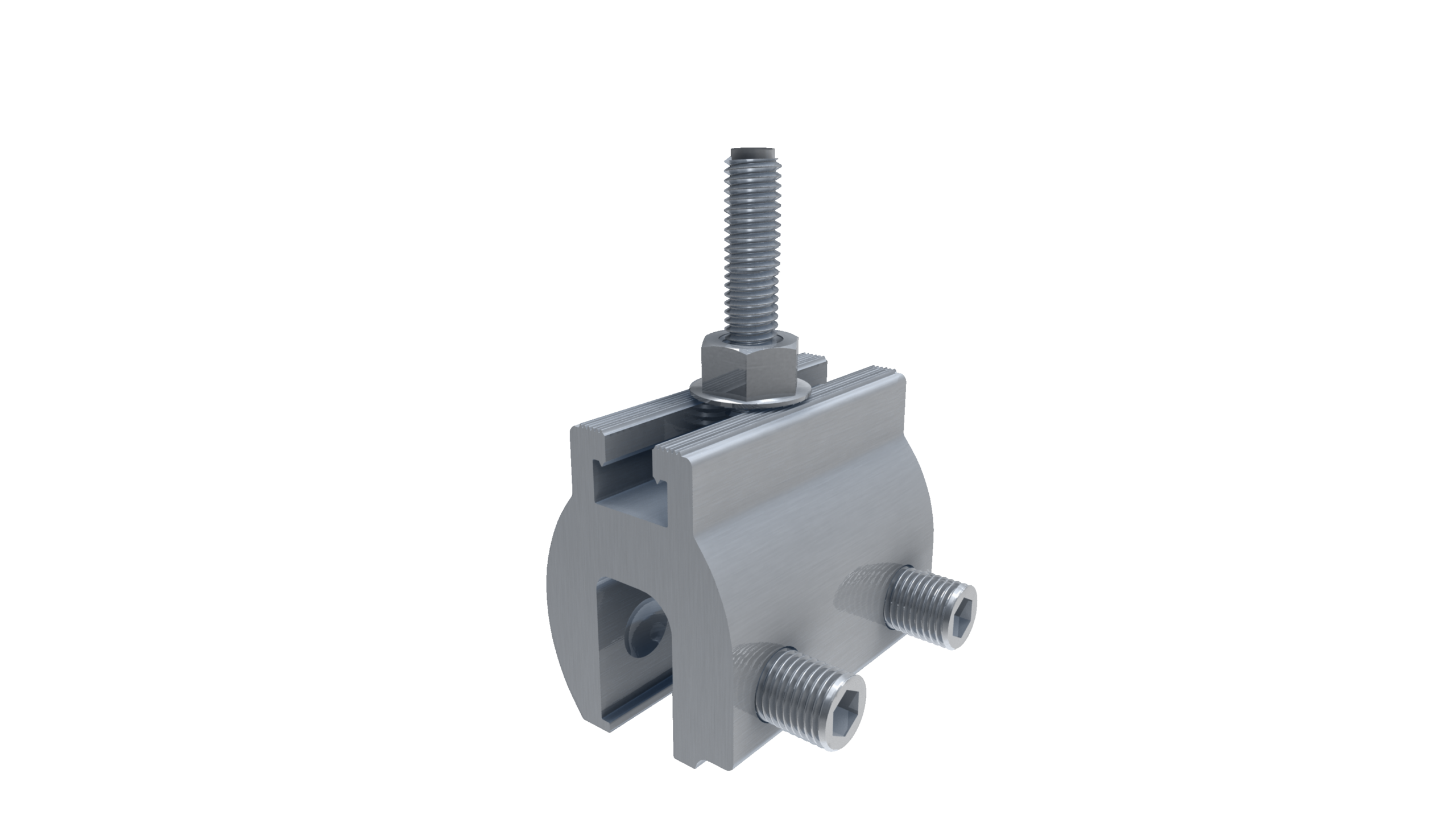

SimpleBlock-U
Combines with the Universal L-Foot to attach the ClickFit system to standing seam metal roofs

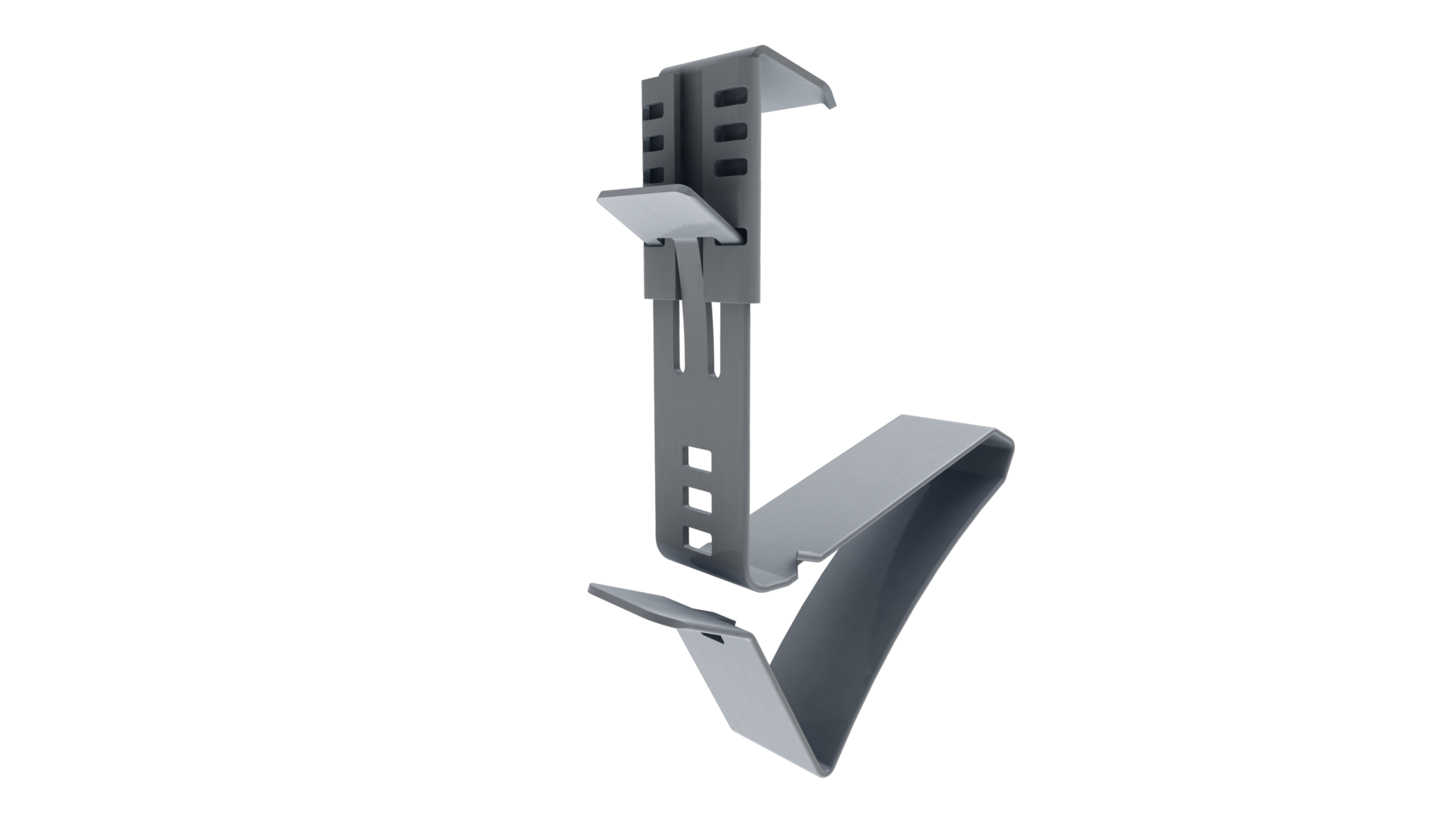

Universal Side Clip
Frame attach wire clip adjusts to fit 30MM, 32MM, 35MM, and 40MM frame thicknesses
