Getting Started with
ClickFit Tilt
Commercial Flat Roof Racking System

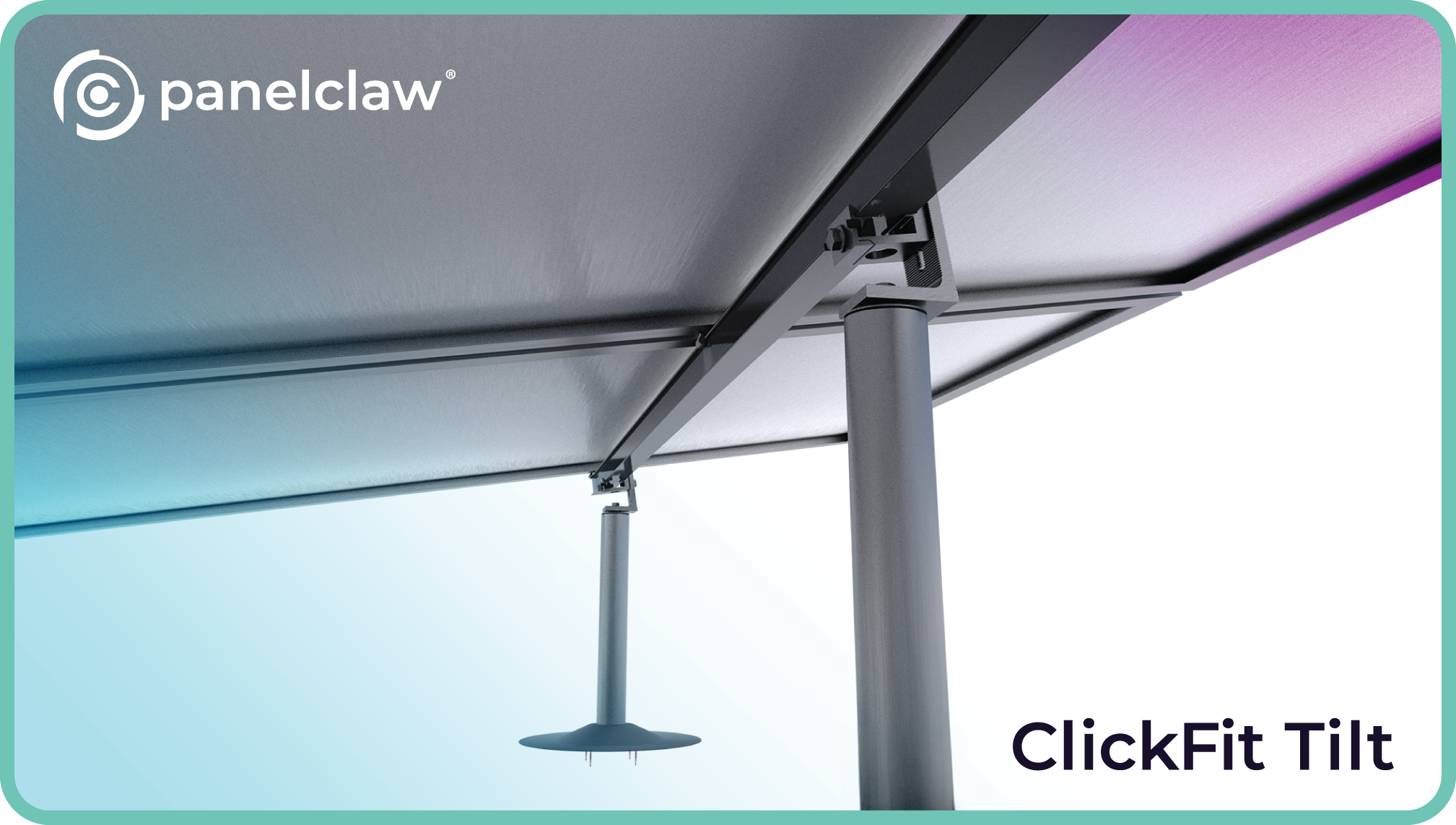

ClickFit Tilt is a versatile solar mounting solution built to meet the varied conditions and requirements of commercial flat roof projects. Its elevated, fully attached design provides easy access for O&M and wire management, offers flexibility around structural limitations and rooftop obstructions, and supports high-performance bifacial production. Engineered for re-roofs, ClickFit Tilt allows solar to be installed now while taking advantage of the roof’s remaining service life. Part of the ClickFit platform, ClickFit Tilt brings a proven installation approach to the flat roof market. ClickFit Tilt is available with FEOC-free U.S.-made components for projects seeking the IRA Domestic Content Bonus Credit.
Technical Details
System Specifications
The ClickFit Tilt racking system is widely compatible with a variety of flat roof types. The system is part of the ClickFit Platform. ClickFit Tilt is fully attached to the roof using our Flat Roof Anchor, or various third-party mechanical attachments.
- Applicable on roofs with slopes of 5° or less (up to 7° with engineering review)
- Membrane, tar and gravel, ballasted, BUR, concrete, asphalt
- Compatible with various third-party roof attachments
- Platform Load: ~2.0 psf
- Module Orientation: Portrait
- Up to 190 mph ASCE 7-22 (> 190 mph by approval)
- Wind Exposure Category: B and C (D with review)
- USGS Seismic Categores: A, B, C, D (others require engineering review)
- Tilt Angle: 8 degrees
- Flexible Row Spacing: 11″ min (28 cm), 48″ max (122 cm)
Reliability
The popular ClickFit platform has been installed for over half a decade across North America. It has undergone extensive reliability and performance testing and exceeds US code requirements.
- 25 year warranty
- ANSI/UL 2703-2015 Listed
- System Fire Rating Class A with Module Types
Superior Design & O&M Features
ClickFit Tilt’s versatile, fully attached, elevated design simplifies system installation and O&M while accommodating a range of rooftop conditions and structural requirements.
- Re-roof-ready design with optimized short and tall leg heights compatible with split boot flashings
- Flexible row spacing and a 24″ high side provide safer, easier access for construction, inspection, and O&M
- Elevated design provides clearance over rooftop obstructions such as conduit and drainage
- Fully attached system allows strategic placement over structural supports, reducing added roof load compared with ballasted systems
- Redundant module-level bonding and grounding make single-module replacement simple
System Components
The ClickFit Tilt racking system features seven basic components that can be installed using a single tool.

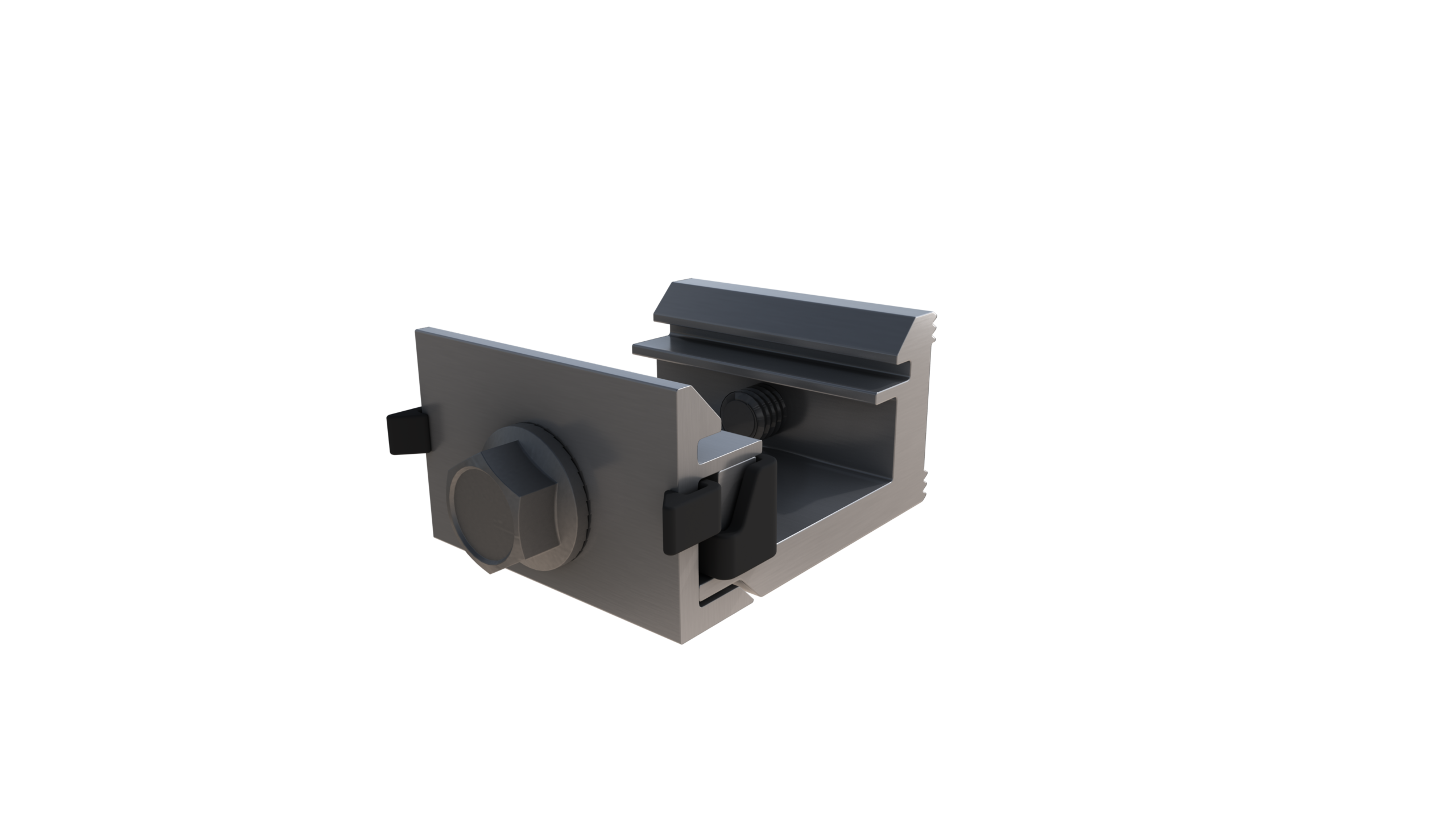

Clicker
Features a pre-installed bolt for fast click-in Rail attachment
ClickFit Rail
Click-in Rail available in commercial-friendly 92″, 105″, 183″, and 210″ lengths
End Clamp
One Click-on End Clamp fits modules from 30-40MM in height
Mid Clamp
Features integrated bonding pins and fits module frames sized 30-40MM

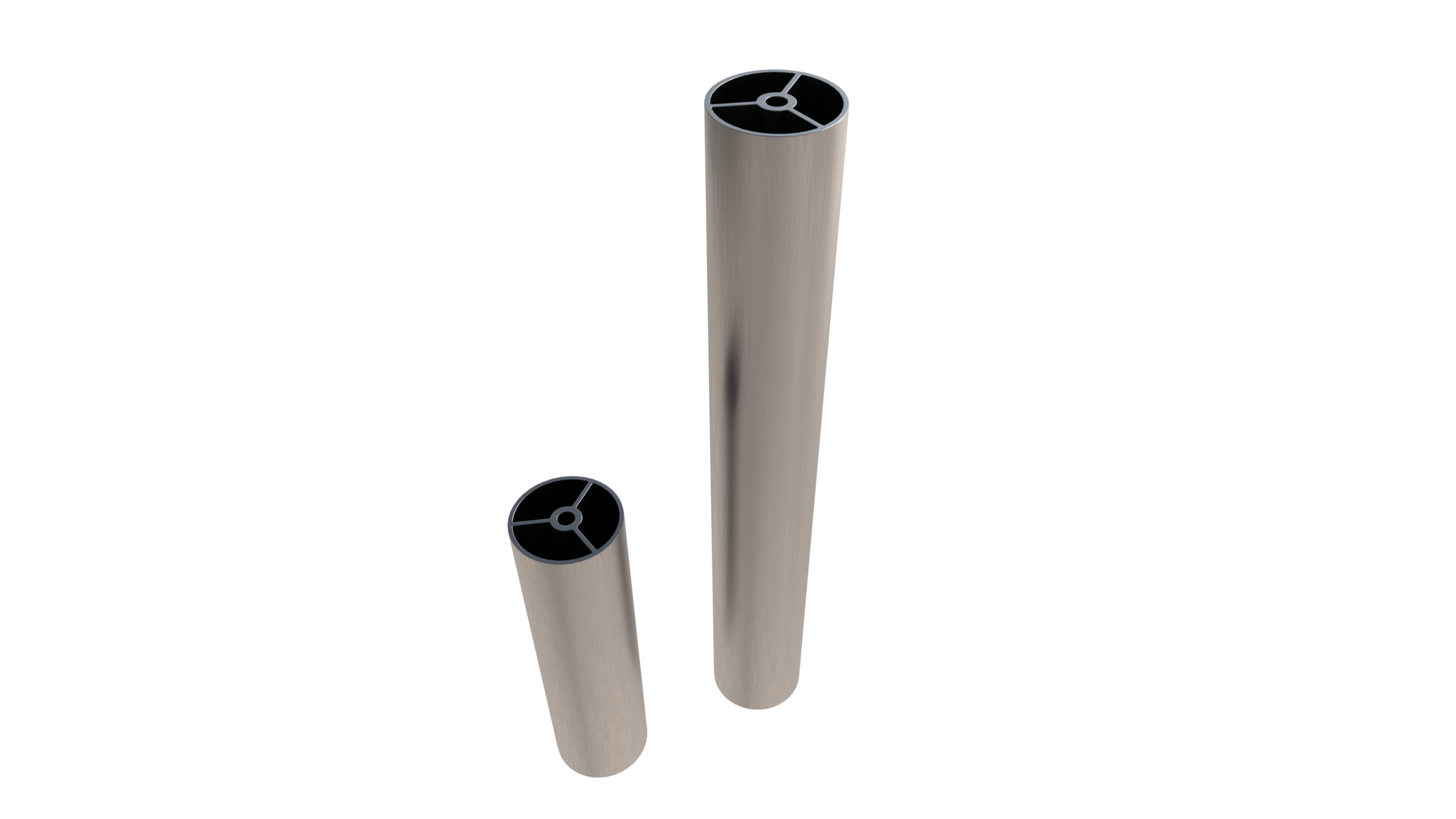

Short & Tall Posts
Aluminum posts come in two sizes – 9″ and 24″
Splice
Tool-free fully bonded structural internal Splice installs in seconds

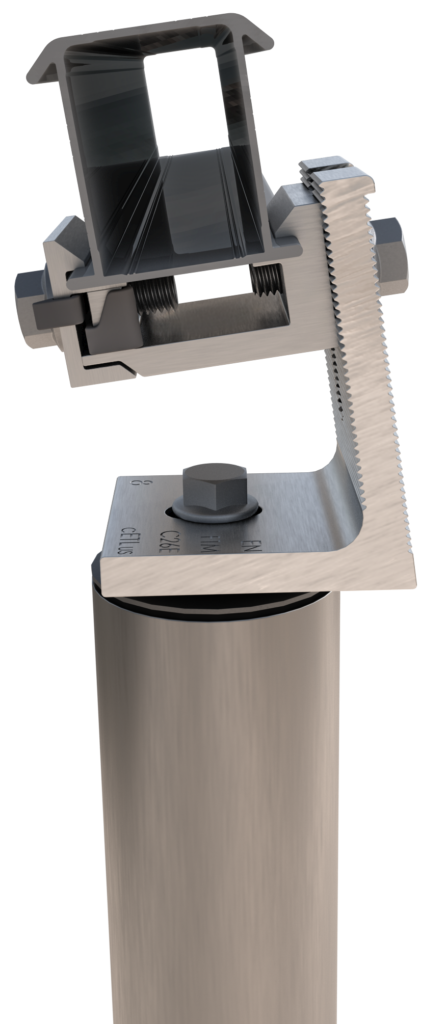

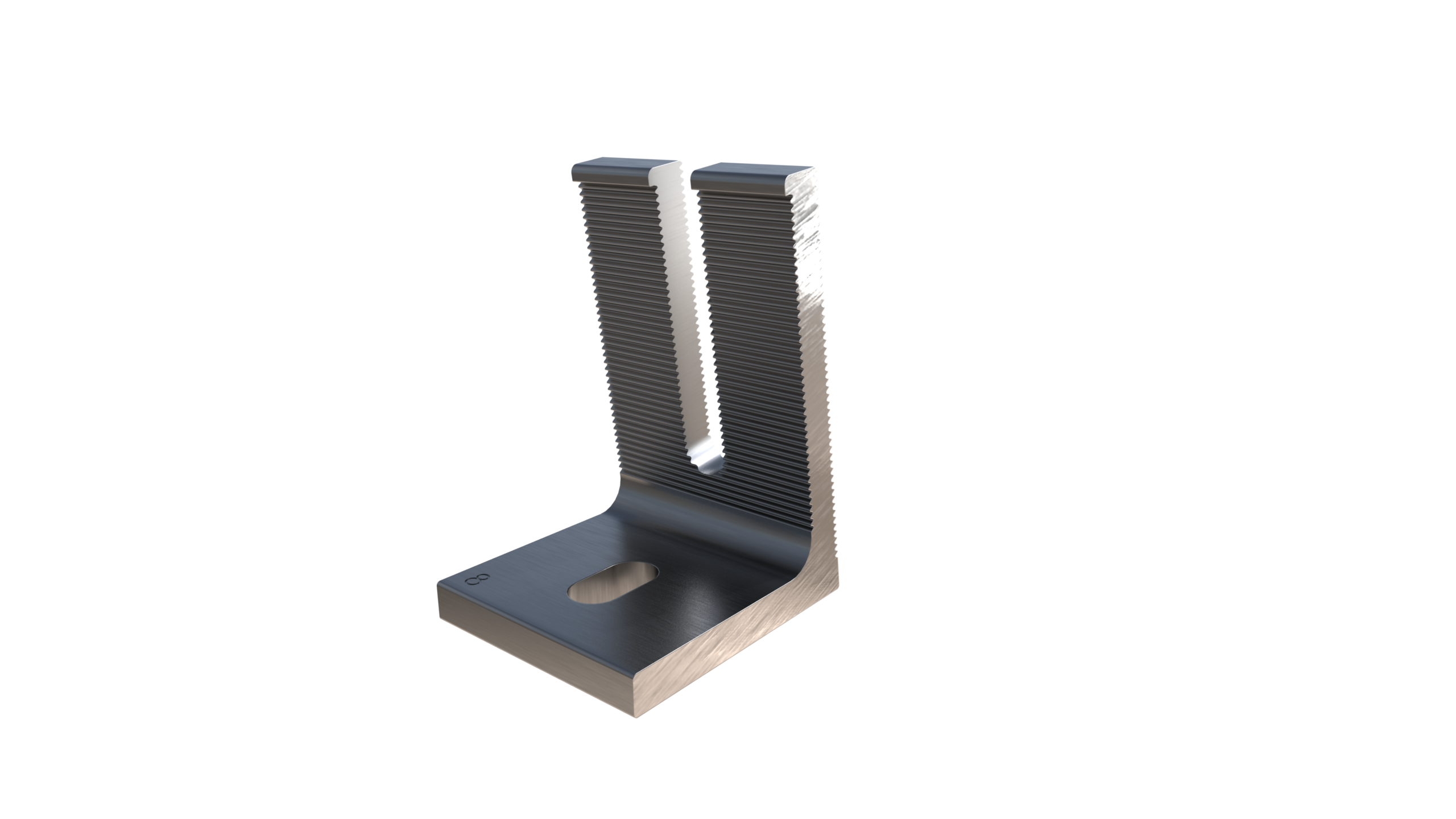

Tilt L-Foot
8 Degree fixed-tilt L-Foot
Mounts & Accessories
ClickFit Tilt can be mechanically attached to a variety of flat roof types using our Flat Roof Attachment. The system is also compatible with select third-party mechanical attachments. The system features a full suite of wire management accessories that are compatible with the entire ClickFit platform.
ClickFit MLPE Mount
Attaches and secures the Module Level Power Electronics to the top of the rail
ClickFit Wire Clip
Stainless Steel ClickFit Wire Clip clicks onto the Rail and accommodates 1-3 PV wires or 1 Q cable and 1-2 PV wires.

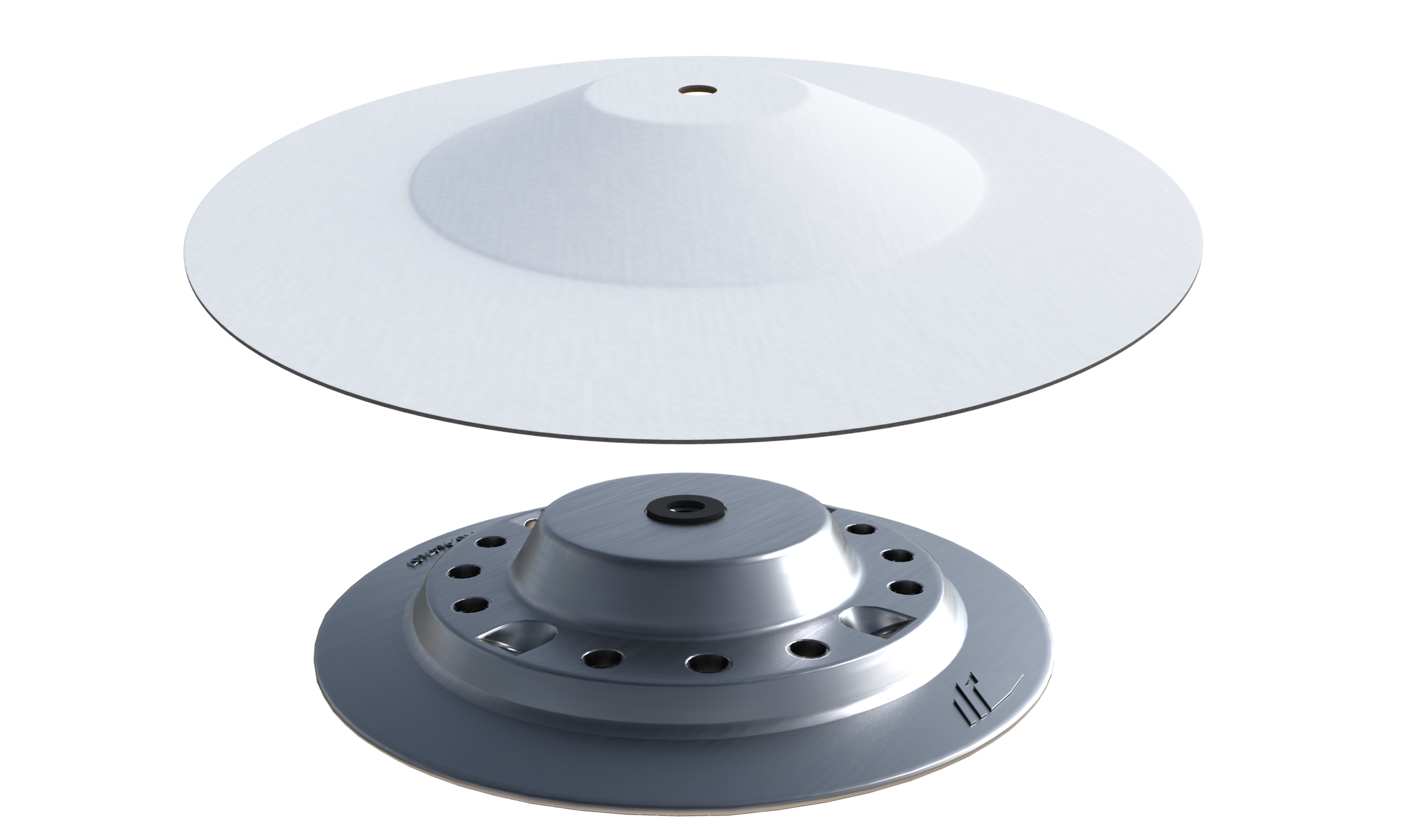

Flat Roof Anchor
The Flat Roof Anchor (FRA) can be mechanically attached to a variety of common flat roof membranes
Universal Side Clip
Frame attach wire clip adjusts to fit 30MM, 32MM, 35MM, and 40MM frame thicknesses

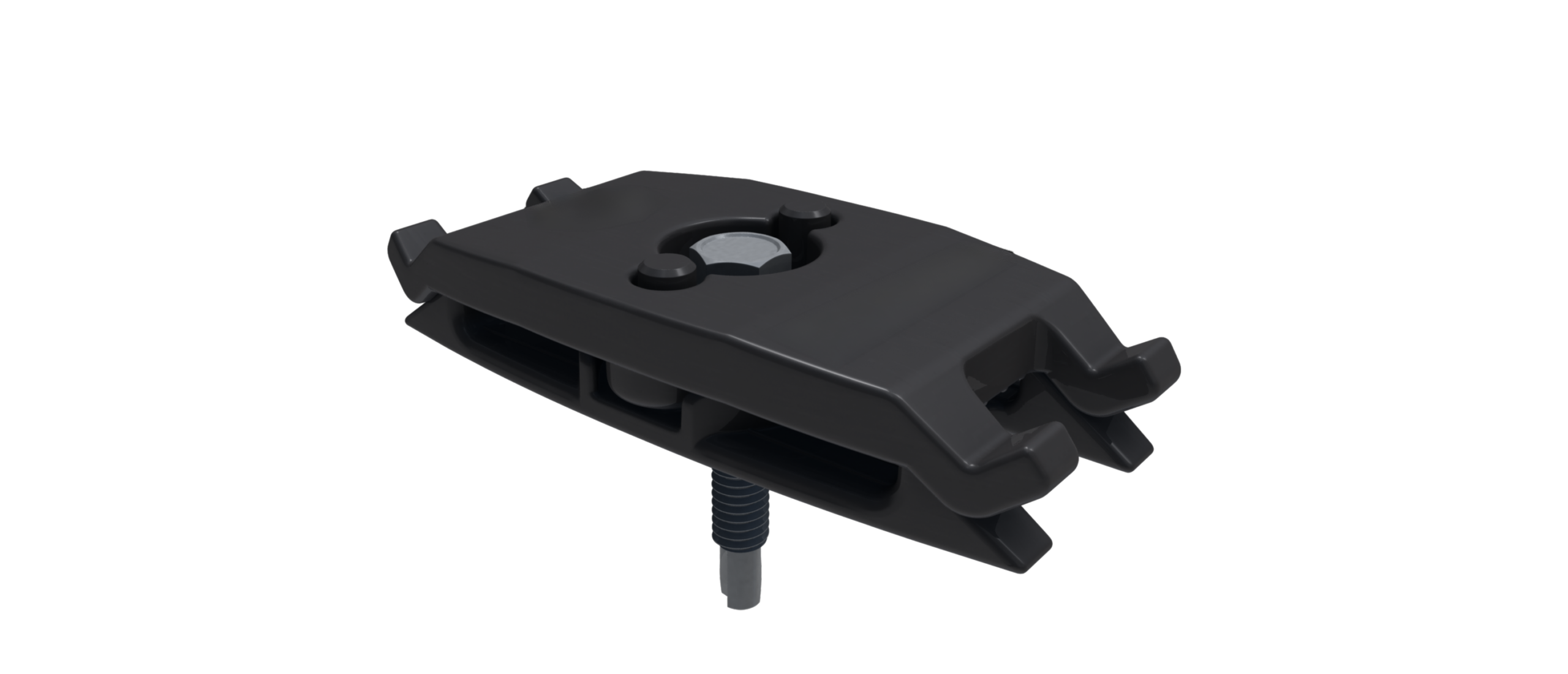

Wire Management Clamp
Can be secured on the top of the rail to run wires in any direction
